FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone

FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone

Name: FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone
Brand: CJ
SKU: CJXFJTDS00011-Black
Price: 35.19 USD
Availability: InStock

$35.19

In stock

Color:

Black

Variant

Quantity:

Description

FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone

Receiver adopts CNC aluminum alloy shell,(not plastic) structure and beautiful, good for heat dissipation, strong anti-interference ability.

Product Introduction:

This is the newest and best version OTG FPV Receiver, add auto sweep and matc frequency,Graphical interface,Snow screen 0.1s Delay.
We increase the channel to 150CH. The accuracy is 2m, which is the highest accuracy of the chip in the world.
Sail model of affection and dedication, support any flight control,150 frequency points + automatic sweep frequency + spectrum instrument graphical interface + snow display +...... more simple and beautiful appearance.
With a high accuracy, then the abstract radio,this thing is the mobile spectrum instrument, you can detect the quality of the antenna, the transmitter to do ho

Specification:

Frequency: 5.8G

Channel: 150CH

Working Current: 200mA/5V

Power Supply: 5V(by smart phone)

Frequency Range: 5645~5945MHz

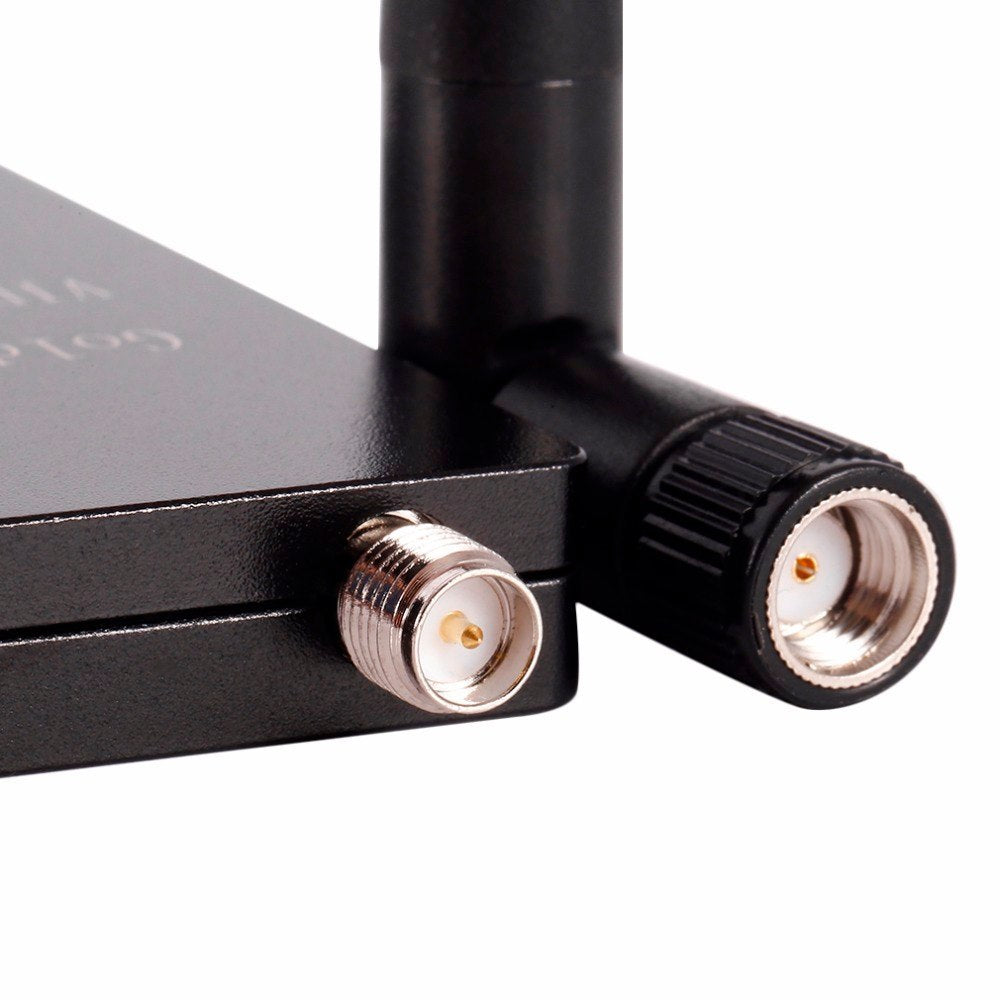

Interface: micro USB type-B, RP-SMA female, AV output port

Antenna interface: RP-SMA male

Sensitivity: -90dBm

Operating Temperature: -10~60'C

Cable length: 24.2cm ( including connector )

Receive distance: 1 - 2km ( also depending on the transmit power and antenna )

App name: Go FPV

Download: Google Play

System requirement: Android 4.3 or above, Windows 7 / 10

FPV Equipments: Receiver

Functions: Video

Package weight: 0.092 kg

Color: Gold , Black

Shell Material: CNC aluminum alloy

Product size (L x W x H): 6.00 x 3.20 x 0.90 cm / 2.36 x 1.26 x 0.35 inches

Package size (L x W x H): 15.00 x 8.00 x 1.90 cm / 5.91 x 3.15 x 0.75 inches

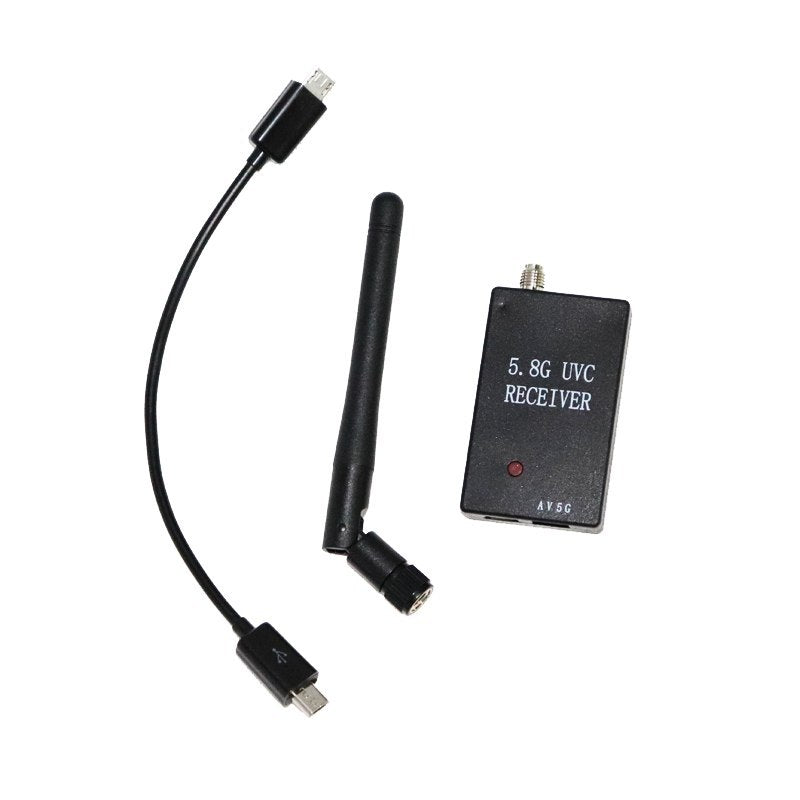

Package Contents: 1 x OTG FPV Receiver, 1 x Antenna, 1 x Micro USB Cable

Compatible with all 5.8 G figure transmitter on the market.
A key to frequency, the OSD display frequency waveform and signal strength.
In order to ensure the best results, please maximum and bottom value of calibration signal before use.
As for calibration, please lay in empty outdoor place.
Pull the transmitter more than 30 meters/1181.1" for calibration.
Long press function key and then energize receiver to slide into the calibration mode.

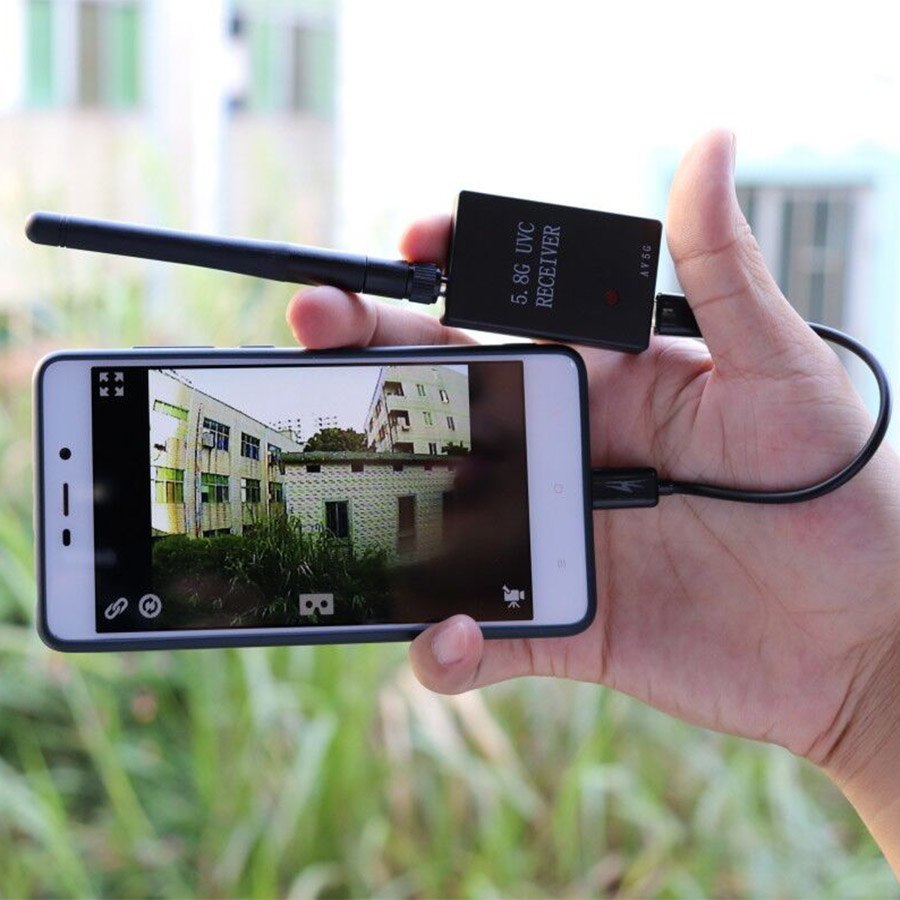

Usage for Mobile Phone :
For Android Smartphone / Tablet
1. Install an APP on your phone/tablet,
2. Connect to Gold Model receiver with OTG Cable (no need external power supply)
3. Power on, press the button on receiver for 3 seconds, automatic search frequency points and lock the strongest signal system
